- MHD Part #: 27450C
- |
- Brand: Trucklite
Complex Reflector, 5"x7" Rectangular, LED, 12-24V, Headlight

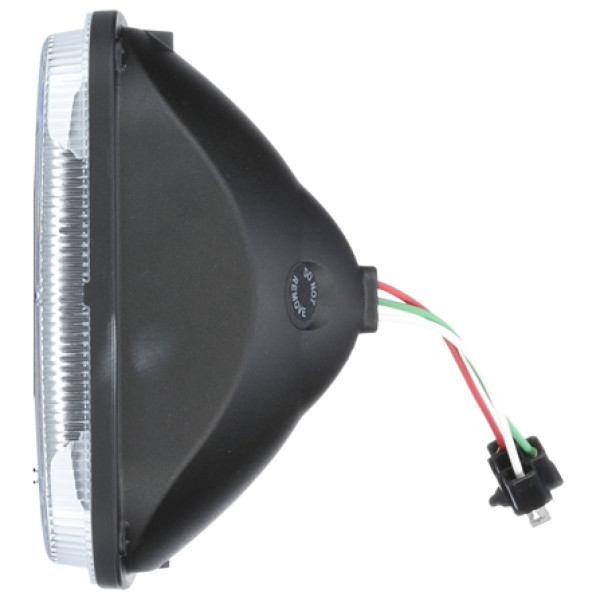

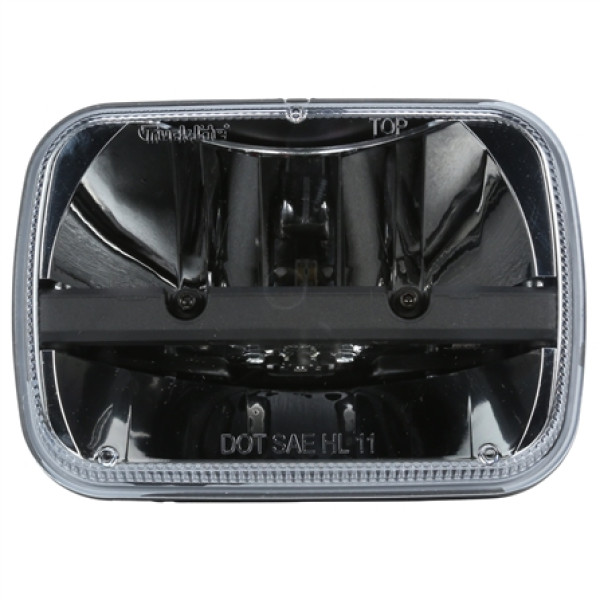

Truck-Lite 27450C is a 5x7 in rectangular LED headlight for 12–24 V systems with high/low beams. A die-cast aluminum housing, non-yellowing polycarbonate lens, and epoxy-sealed electronics deliver durability in harsh environments, while metalized reflector optics produce a clean, daylight-like beam. DOT compliant with an H4 3-blade connector for quick retrofit across mixed fleets.
14 In Stock - Ships today
Estimated delivery time by Ground Rate (1 to 5 days)
Secure checkout process with
 |
Performance and Compliance
The Truck-Lite 27450C is a 5x7 inch rectangular LED headlight engineered for 12–24 V electrical systems with a low 1.45–2.95 A draw. Its high/low beam design uses six diodes with metalized reflector optics to deliver a smooth, uniform lighting pattern and a brighter, crisper, whiter output closer to daylight color temperature. The lamp is marked with the DOT symbol and meets FMVSS 108 and CMVSS 108 requirements for legal on-road use across light, medium, and heavy-duty applications. A standard H4 3-blade connector and grommet mount support straightforward integration on trucks, off-road vehicles, classic cars, and motorcycles.
Durability and Electrical Protection
Built for long service life, the 27450C combines a military-grade die-cast aluminum housing (e-coat) with a non-yellowing polycarbonate lens to resist impact, debris, and corrosion. Solid-state electronics are fully sealed in epoxy to guard against moisture and contamination, while advanced circuitry protects against voltage spikes up to 600 V commonly encountered in commercial vehicle electrical systems. This robust construction minimizes failure modes associated with vibration and environmental exposure, reducing maintenance events and downtime. Supplied with a 3-year limited warranty, the 27450C provides a dependable, retrofit-ready upgrade to legacy sealed-beam or halogen 5x7 lamps.
Product Features
- 12–24 V operating range with 1.45–2.95 A draw supports mixed-fleet voltage standards while reducing electrical load.
- Six-diode, high/low beam complex reflector optics produce a uniform beam pattern for improved down-road visibility.
- Epoxy-sealed electronics resist moisture and corrosion to extend service life in harsh environments.
- Die-cast aluminum housing with e-coat and a non-yellowing polycarbonate lens withstand impact and debris to reduce replacements.
- Advanced circuitry with transient protection up to 600 V safeguards against voltage spikes common in heavy-duty systems.
- Standard H4 3-blade connector and grommet mount enable a drop-in retrofit for 5x7 rectangular applications.
- DOT/FMVS 108/CMVSS 108 compliant marking ensures legal on-road operation across regions.
Product Specifications
| Brand: | Truck-Lite |
|---|---|
| Part Number: | 27450C |
| Product Type: | Headlight |
| Category: | Lighting |
| Sub-Category: | Front End Lighting |
| VMRS: | 034-001-000 |
| Regulation: | CMVSS 108, DOT, FMVSS 108 |
| Voltage: | 12-24 V |
| Current: | 1.45-2.95 A |
| Size: | 5x7 in |
| Shape: | Rectangular |
| Light Type: | LED |
| Beam Type: | High/Low |
| Diodes: | 6 |
| Connector: | H4, 3-blade |
|---|---|
| Mount Type: | Grommet Mount |
| Housing Material: | Die-cast aluminum |
| Coating: | E-coat |
| Lens Material: | Polycarbonate |
| Lens Color: | Clear |
| Transient Protection: | Up to 600 V |
| Warranty: | 3-Year |
| SPN: | 27450C4 |
| Web Ready: | 100 |
| Shipping Weight: | 2.61 (lbs) |
| Shipping Height: | 5.62 (in) |
| Shipping Width: | 4.63 (in) |
| Shipping Length: | 7.90 (in) |
